Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

Brand Name : MAX

Model Number : MX-50B

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 SETS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C/Paypal

Supply Ability : 2000 set/month

Delivery Time : 3-10 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Name : Parking barrier gate

Arm Type : Straight Articulated, Fence

Working Temperature : -40℃～+75℃

Color : Red, Orange, Blue, Black optional

Motor Rotational speed : 1400rmp

Relative humidity : ≤90%

Contact Now

Automatic Reversing Electronic Parking Barrier Gate Manual Release For Parking System

Quick Detail:

Model	MX-50B
Working Temperature	-40℃～+75℃
Voltage	220V±10%, 110V±10%, 50/60HZ
Rated power	80W
Relative humidity	≤90%
Remote control distance	≥30m
Net weight	48kgs
Speed	1S,1.8S,3S, 6S
Max boom length	6 meters
Motor Rotational speed	1400rmp
Protection Degree	IP54

Functions&Features:

1. Automatic and manual barriers by MAX are perfect solution for customers who care for enhanced security of their premises or property and for whom the vehicle access control is crucial.

2. No matter, whether you are currently working on a smaller project, large-scale investment or traffic management in your municipal quarters. For more than TEN years MAX company manufacturers and delivers its own customer proven barriers for small to multi-storey car parks, private and company
premises, industrial and hospital premises, hotels, motorways, tunnels, toll stations and other application areas, where it is convenient to use barriers as stand-alone measures or in combination with other access control systems.

3. During the development, the main emphasis was put on utmostreliability, ease of use and safety of operation. Using quality materials and technology ensures long and trouble-free service life of barriers even under demanding conditions with high traffic density.
For the most demanding climatic conditions and harsh environments (high humidity, road or sea salts etc.) automatic barriers in stainless steel casing are available.

AC MOTOR-The Drive Unit

#1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
# 2 Machine core can automatically warming when the outside temperature is below 0
# 3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
# 4 Motor cooling: Forced ventilation with fan
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

Compressed Balance Spring
Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidentscaused by tension spring
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

Liberate Cushion
Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

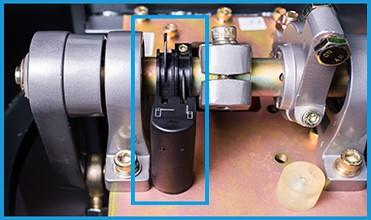

Photoelectronic Limit Switch
Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

Arm Auto Reverse
Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle

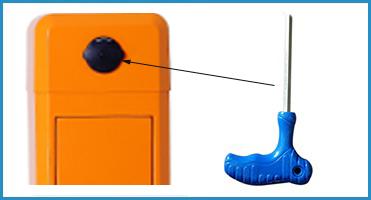

Clutch Device
Clutch key can be unlocked to the clutch when power off, conveniently raise the arm without removing the top cover or body housing
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

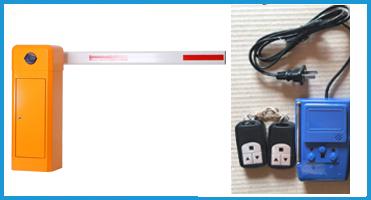

Remote Control
Remote control antenna works with remote control push button and remote control units, easily control arm to rise and fall
Automatic Reversing Electronic Parking Barrier Manual Release For Parking System

Model Selection and Differences

Model	Boom Shape	Max Boom Length	Speed
MX-50	Straight boom	6m	6 seconds
MX-501	Straight boom	4.5m	3 seconds
MX-502	90 degree, Articulated boom	5m	6 seconds
MX-503	90 degree, Articulated boom	3m	3 seconds
MX-504	180 degree, Articulated boom	5m	6 seconds
MX-505	180 degree, Articulated boom	3m	3 seconds

Service for free:

1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
