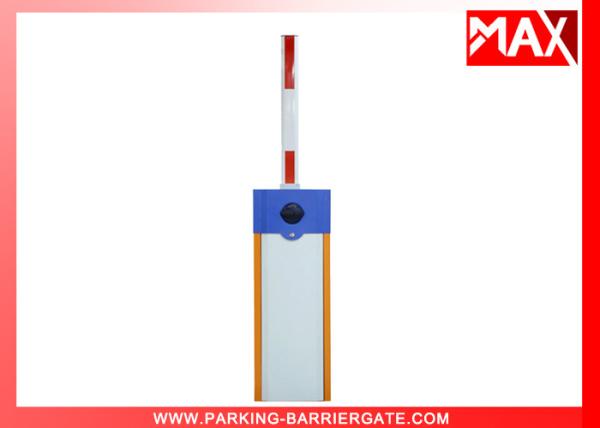

Security Entry Boom Barrier Gate, Car Parking Barrier Gate System
Specifications:
| Model |
MX-60(MAX 1st generation machine core)
|
| Power |
80w
|
| Material |
Cold roll plate, Galvanized plate or stainless steel
varnish baking, 3 years without fading
|
| Running Time |
1s, 1.8s, 3s, 6s
|
| Operating Temperature |
-45°C to 75°C
|
| Voltage: |
220V ± 10%, 110V ± 10%
|
| Relative Humidity |
<90% coagulation free
|
| Motor speed |
30r/min
|
| Boom length |
Max 6 meters
|
| Net weight: |
55Kg
|
| MCBF |
≥5, 000, 000 times
|
| Housing Size |
320*280*935mm
|
| Traffic light |
Optional
|
| Rail material |
Aluminum Alloy
|
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy.
Folding arm: 90°folding arm / 180°folding arm, aluminum alloy
Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy
|
| Related accessories |
Infrared sensors, loop detectors,traffic light, UHF readers
|
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite
2. 7 years OEM/ODM experience
3. quick response for handling problems
|
| Our other products |
MAX has other products: tripod turnstiles, sliding gate motor,
flap barrier,swing gate motor,
pedestrian access control turnstiles and barriers,
and other related accessories.
|
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Parking & Shipping:
| Packing list |
| Name |
Specifications |
Quantity |
Remarks |
| Machine core |
Good in working |
1 |
Main part |
| Barrier arm |
Straight, folding or fence arm |
1 |
Optional |
| Boom press board |
|
1 |
Fixing the boom |
| Self-tapoing screw |
ST4*16 |
Fixing the boom |
|
| Self-tapoing screw |
st3*10 |
4 |
Fixing the boom |
| Supporting pole |
|
1 |
Fupporting the boom |
| Expanion bolt |
M16*150 |
4 |
Fixing the case |
| Hexagonal Inner Screw |
M8*35 |
4 |
fixing the case |
| Clutch key |
|
1 |
clutch device |
| Case Key |
|
2 |
for case and cover locking |
| Balance spring |
According to length of barrier arm |
1 |
for sapre usage |
| Remote emitter |
less than 30m is available |
1 |
For remote control |
| Remote conrol handles |
less than 30m is available |
2 |
For remote control |
| Instruction |
in English |
1 |
For reference |
| RS485 interface |
|
1 |
Optional |
| Disc |
|
1 |
Optional |
| Communication Mould |
|
1 |
Optional |
| Cover head |
|
1 |
3 years without fading |
| Expanion nut |
M8 |
4 |
Fixing the supporting pole |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
| A |
Reason |
Solution |
| 1 |
Fuse blown |
Check fuse and power in controller |
| 2 |
Battery of remote control powered off |
Change a new one |
| 3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
| 4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
| A |
Reason |
Solution |
| 1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
| 2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
| A |
Reason |
Solution |
| 1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
| 2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
| 3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
| A. |
Reason |
Solution |
| 1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
| 2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal position |
FAQ:
Q1: What’s your MOQ?
A1: MOQ 1 pc.
Q2: How about bout lead time and delivery?
A2: 3-10 days lead time. We can send by any kind of shipping methods.
Q3: Can you do OEM?
A3: Yes, we do OEM, and can customize barrier gate case, color, logo or controller for you.
Q4: What about quality warranty and after-sale service?
A4: Life time warranty for motor, 2 years warranty for the rest parts except arm and remote. We support
customer's any quality issues, and our enterprise principle is to build long term after-sale service for all customers.
Q5: Can you provide barrier gate installation instruction?
A5: Online/remote instruction can be provided by the technicians if need. Others depend on your detailed requirement.
