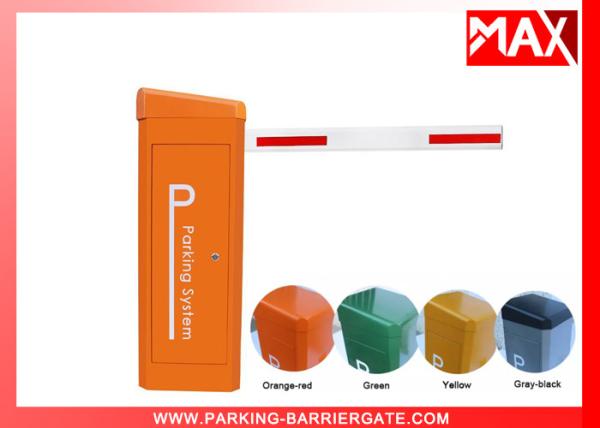

Designed for gates/exits with heavy car traffic.Equipped with a special bar system to prevent the barrier engine from getting damaged in case of car hits.Suitable for all weather conditions.
Functions:
1. The gate automatically open when the power is off, no clutch design, no need human intervention. When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended, fire safety standards. If there is special need, manual operation is required when the power if off, the operating arm can open and close manually. Can also set up the control board DIP switch, which will ensure the system can be used at any time
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Speed can be adjusted.
Data sheet
| Max boom length |
6 meters |
| Opening time |
0.6sec to 6sec |
| Power |
Max 100w |
| Housing Material |
Powder-coated steel/ Aluminum |
| Net weight (no boom) |
43KG |
| MTBF |
10 million times |
| Working temperature |
-40°C~+50°C |
| Protection grade |
IP65 |
| Driving unit |
Servo motor |
Program 1
The barrier gate can be controlled by two-key push button and an impulse will trigger the operation relay.
Connecting GND and COM, 24V with UP is for machine opening, 24V with Down is for machine closing. Other accessories interface input available, like IR sensor and loop detector signal.
Program 2
The barrier gate can be controlled by remote controller or GSM gate opener.
Connecting the antenna receiver GND to COM on the board, Remote-up is for opening and Remote-down is for closing.
If the remote control receiver is non-electric relay signal, connecting GND and COM first, the 24V connecting with Remote-up is for opening and 24V connecting with Remote-down is for closing.
Program 3
The barrier gate can be controlled by gate photocell(IR sensor) or loop detector for automatic opening and closing. There are other signal input as emergency stop and alarm signal. The connection is as program 1 mentioned.
Program 4
Boom-drop signal input: when the boom is crashed by passing vehicle, the barrier gate will stop to run with a warning output.
Packing List:
| Title |
Specification |
Qty |
Unit |
Note |
| Barrier gate boom |
|
1 |
Piece |
|
| Machine case press board |
|
2 |
piece |
For fixing case |
| Expansion bolt |
M16X150 |
4 |
set |
For fixing case |
| Supporting pole |
|
1 |
piece |
Optional part |
| Expansion bolt |
M8 |
4 |
unit |
For fixing boom |
| Boom fixed screws |
M12*70 |
2 |
unit |
|
| Case Key |
|
2 |
unit |
|
| Balance spring |
|
1 |
unit |
For spare usage |
| Remote controller |
|
2 |
unit |
|
| Machine control |
|
1 |
unit |
|
| Instruction |
|
1 |
piece |
|
Suggested Application
High-speed barrier gates can only be used for toll stations for highways and main roads.
The medium speed barrier gates are designed to control the entrance and exit channels for parking area, multi-storey car parking lot and other vehicular access routes.
The controller is specifically designed to control the barrier gates.
It is not permissible to use these barrier gates for any other purpose.
Any changes and replacements to the barrier gates and the control components are prohibited.
