Intelligent Servo Motor Gate Barriers Arm PMSM Motor Intelligent Barrier System
Quick Information
1.Fast speed, can be changed from 0.9sec to 6sec.
2.Double safety limit
3.Three operation modes: Remote control,push button,manually operation.
4.Die-casting aluminum alloy motor,Waterproof,anti-aging ,Anti-sunshine .
5.runs stable and reliable.

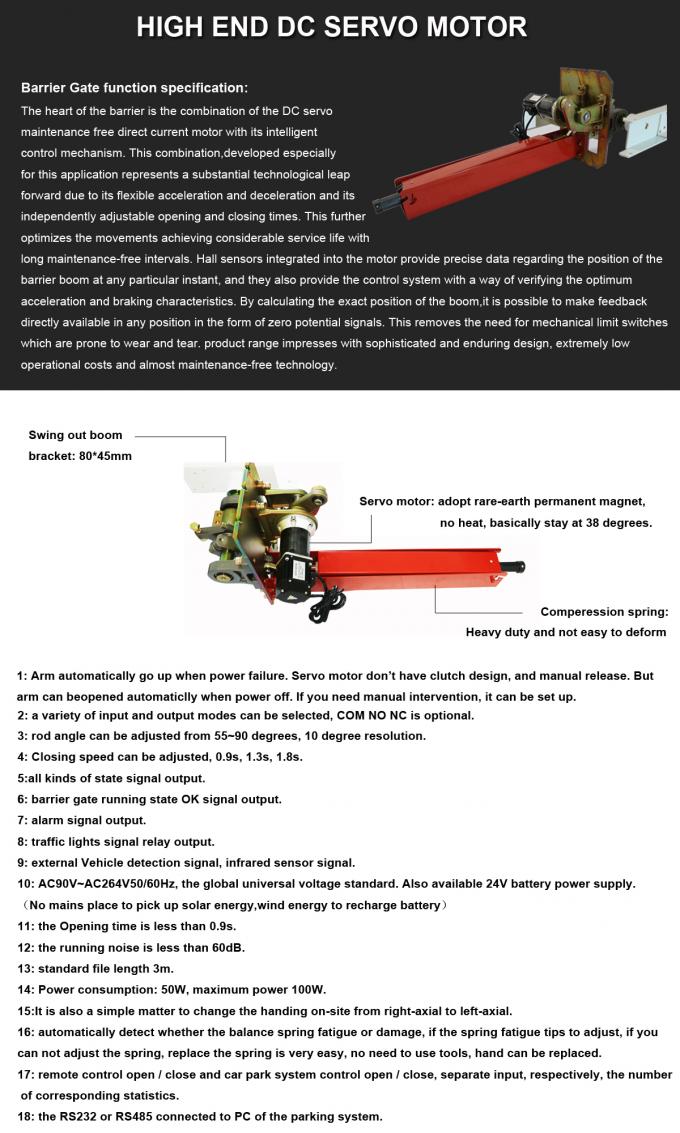

Technical data:
| Model | MX-88 Barrier Gate Arm |
| arm length: | 2000mm-6000mm |
| opening and closing time: | ≤ 0.6s, 0.9s, 2s, 4s |
| Rated voltage: | AC100V ~ AC264V, DC24V |
| Frequency: | 50Hz ~ 60Hz |
| Motor rated power: | 50W, the maximum power of 100W |
| Working environment temperature: | -40 ℃ ~ 75 ℃ |
| Power: | standby ≤ 8W, run ≤ 100W |
| Dimensions (W * D * H): | 342 * 312 * 959mm |
| Lifetime: | more than 10 million or 10 years |
| MTTR: | <0.5 hours |
| MTBF: | > 5 million times |
| Protection degree: | IP65 |
| Relative humidity: | ≤ 90% |
| Motor no-load speed: | 3000 r / min |
| Remote control distance: | ≤ 100 meters |
| Longest ARM length: | 6 meters |
| Output torque: | 0.86N.M * 140 = 120N.M. |
| running noise: | < 50dB |
| Barrier N.W | 42.6kg |
| Surface treatment | Outdoor metal powder, electrostatic spraying |
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
FAQ:
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-8 days if the goods are not in stock, it is according to quantity.
